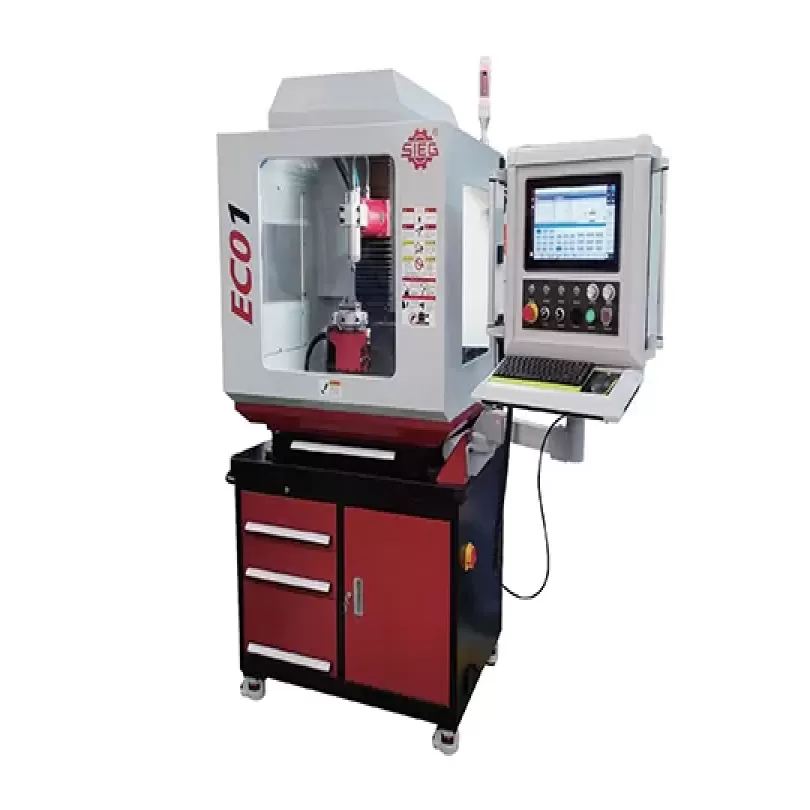

ECO1 5-axis CNC Milling Machine
Support 5-axis linkage interpolation
Support RTCP function and 3+2 function
Support absolute value encoder function (without installing origin switch)
Support encoder feedback and grating ruler feedback
Compensation for pitch error
Add dual speed forward function
Support stl 3D graphic processing preview
Support the function of cutting off, power-off, and continuous connection, as well as skip segment processing
Directly compatible with processing programs from SIEMENS, HEIDEN-HAIN, FANUC, SYNTEC, GSK, and HNC systems
ECO1 5-axis CNC Milling Machine
- Table
Table size φ130 mm
Max load 10 kg
-Travel
X travel 300 mm
Y travel 320 mm
Z travel 300 mm
A swing angle -90°～+120°
C swing angle 360°
Working area φ100x120 mm

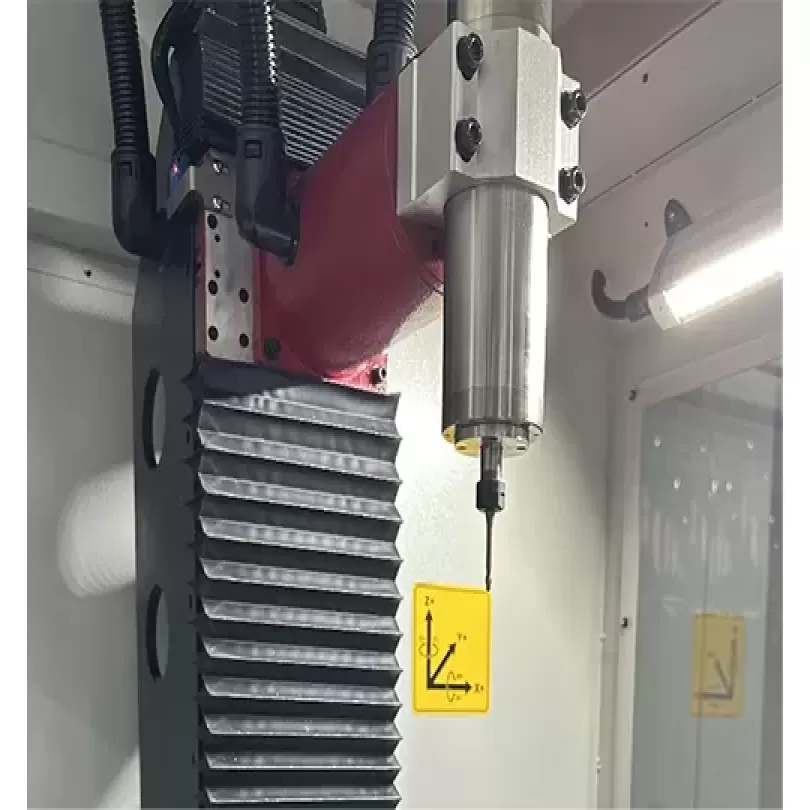

-Spindle
Spindle taper ER11
Spindle speed 24000 r/min
Spindle power 1.5 Kw
- Axis
X/Y/Z speed 5 m/min
A swing speed 20 rpm
X/Y/Z motor 3 Nm
A/C motor 2.2 Nm
Accuracy X/Y/Z positioning accuracy 0.015 mm
A/C positioning accuracy 30 sec
X/Y/Z repeatability accuracy 0.01 mm
A/C repeatability accuracy 20 sec
Others Pneumatic supply N/A
Power 3 KVA
Machine weight 520 kg
Overall dimension 1600x960x2000 mm
Packaging size 1710x1310x2220 mm
Support 5-axis linkage interpolation
Support RTCP function and 3+2 function
Support absolute value encoder function (without installing origin switch)
Support encoder feedback and grating ruler feedback
Compensation for pitch error
Add dual speed forward function
Support stl 3D graphic processing preview
Support the function of cutting off, power-off, and continuous connection, as well as skip segment processing
Directly compatible with processing programs from SIEMENS, HEIDEN-HAIN, FANUC, SYNTEC, GSK, and HNC systems
