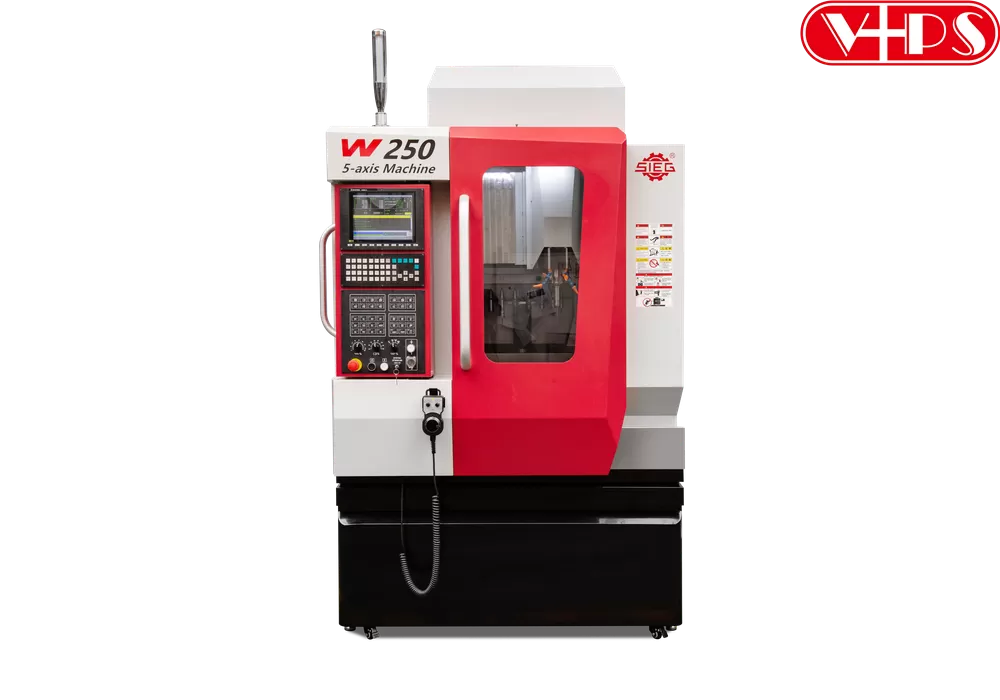

5-axis CNC Machining Center

Model: W250

Model：W250 5-axis CNC machine

Structure：Mobile gantry，AC cradle type，five axis

Application industry： Metal processing

Processing method：Engraving and milling

Processing materials：Copper aluminum soft metal，plastic，wood unquenched metal，mold steel，stainless steel

Price: Contact

5-axis CNC Machining Center

- Table

Table size   240   mm
Max load   30   kg
Travel   X travel   250   mm
Y travel   390   mm
Z travel   280   mm
A swing angle   -110°~ ±110°   °
C swing angle   360   °
- Rapid speed

X/Y/Z   10   m/min
A swing speed   27   rpm
C swing speed   27   rpm
-Spindle

Spindle taper   ISO20
Spindle speed   36000   r/min
Spindle power   3   Kw
- ATC

Tool number   12   pc
Max tool length   200   mm
Max tool weight   1.5   kg
-Accuracy

X/Y/Z positioning accuracy   0.01   mm
A/C positioning accuracy   30   sec
X/Y/Z repeatability accuracy   0.005   mm
A/C repeatability accuracy   20   sec

Machine weight   1600   kg
Total power   8   KVA
Machine size   1350×1400×2200   mm

Model：W250 5-axis CNC machine

Structure：Mobile gantry，AC cradle type，five axis

Application industry： Metal processing

Processing method：Engraving and milling

Processing materials：Copper aluminum soft metal，plastic，wood unquenched metal，mold steel，stainless steel
